Future-proofing utility operations with digital substation technology
The digital substation market is expected to grow by over 7.3% from 2022 to 2028, driven by the benefits of more accurate and reliable data, faster response times, and cost savings on property and infrastructure. However, transitioning from traditional to digital substations can be challenging due to end-user reluctance and limited know-how. COPA-DATA's zenon Energy Edition offers an HMI solution to enable smarter and interconnected substations, resulting in time savings, reduced workload, and a lower risk of errors. Effective staff training and innovation in testing protection relays are critical to addressing these challenges.
In this article, we examine the advantages that IEC 61850 provides for utility companies, with a particular emphasis on its capacity to optimize operations, interoperability, flexibility, and efficiency with zenon. We focus on the capacity of the standard and how it enhances grid management, decision-making, and data exchange. Additionally, we also underline how this standard underscores its capabilities in zenon to adjust to evolving demands, thereby circumventing expensive retrofitting procedures via investment security of the zenon software platform. Furthermore, we emphasize the role of the standard in monitoring, controlling, and automating power systems, which contributes to decreased outage, enhanced asset management, and improved reliability to facilitate smart grid functionalities and advanced applications, thereby establishing a pathway towards a more resilient and sustainable energy future.
-
Flexible digital communication replaces equipment cabling. Digitization using IEC 61850 allows flexible, software-based energy systems.
Key connectivity features of IEC 61850 in zenon
zenon’s detailed support and compatibility with the main IEC 61850 communication protocols is key to the successful realization of a digital substations.
IEC 61850 MMS Client
Connect with IEDs, gather detailed monitoring data and issue control commands. zenon IEC 61850 can connect to devices of any type and brand. zenon´s IEC 61850 MMS Client is compliant with Edition 2.1 of the IEC standard.
IEC 61850 MMS Server
Provide data to upstream applications, such as RTUs, data concentrators or SCADA control rooms.
IEC 61850 GOOSE Publisher and Subscriber
Integrate into communication streams among protection units and flexibly validate and complement protection features.
In conjunction with IEC 61850, zenon covers various solutions on different levels. Due to the high level of integration, solutions can be simply built at any scale and combined with any other system.
-

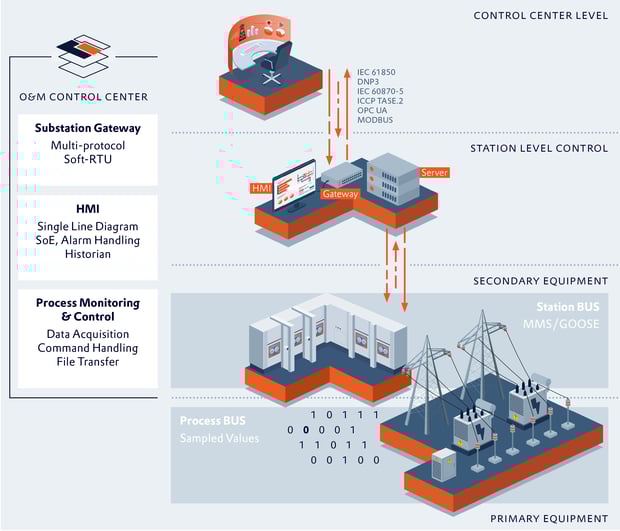

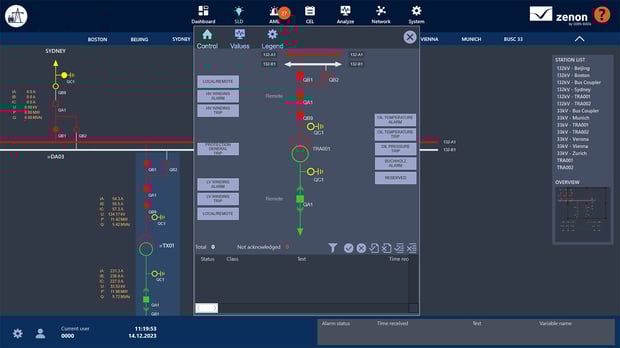

Local and Remote Operations of Digital Substations
Powerful solutions enabled with zenon in Digital Substations
The zenon Software Platform builds the foundation to realize a number of innovative tasks and solutions in digital substations:
Substation Gateway
Central monitoring via regional or national control rooms is a major requirement in many projects. zenon enables this feature with its integrated process gateway. All relevant protocols, such as IEC 60870, DNP3, IEC 61850, MODBUS or OPC UA and many more are available. The connection allows to fully monitor and consistently control substation equipment. For this purpose, the gateway software can mediate flexibly between control center and substation devices, even in case that different protocols are being utilized.
GOOSE Communication Monitoring and Substitution
It may seem unusual for an HMI/SCADA package to come with IEC 61850 GOOSE protocol support. However, it opens a wealth of possibilities. With a GOOSE subscriber, GOOSE messages can be monitored and supervised, leading to better availability and more confidence in this new technology. To replace missing GOOSE messages - for example due to component failure - the GOOSE Publisher can be used. This allows GOOSE messages to continue to be made available until the component failure is resolved.
High availability networking with PRP
PRP (Parallel Redundancy Protocol) is an industry standard which provides seamless failover against any failure of any network component. All Ethernet based communication protocols in zenon, such as IEC 61850 MMS Client and Server, as well as GOOSE can be utilized on basis of PRP.
Unified management of disturbance records

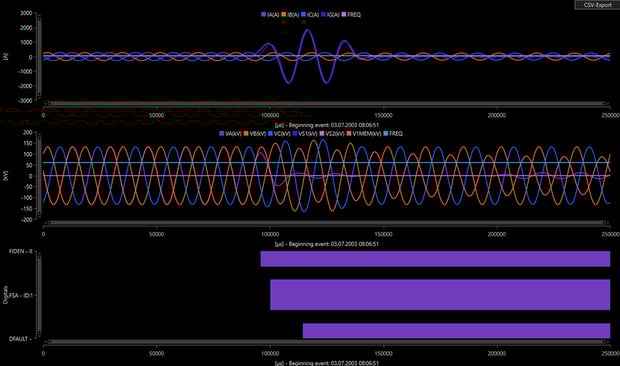

High precision oscillography and status data is captured by IEDs and protection equipment and stored into so called disturbance records. Via the so called File Transfer function, zenon collects these files from the network of IEDs, making them available for central investigation with expert systems. Moreover, zenon is equipped with an integrated COMTRADE viewer (Common format for Transient Data Exchange for power systems), which allows to directly visualize disturbance records according to IEEE C37.111 in the local HMI.
Commissioning support (FAT/SAT)
During FAT and SAT (Factory and Site Acceptance Testing), plant components or devices are often missing. To simulate these, zenon offers extensive tools to create virtual processes. So at least the existing part can be pretested in combination of the simulated part. For the SAT further functions are needed like the variable diagnostic list, which gives a filterable overview of all communicating data points. In addition, the system screen (coms-screen) provides information about the connection status of the connected devices. For the trial operation, alarm statistics can help to find the hotspots of necessary rework.
Device exchange and equipment validation
During regular operation, protection devices must be validated in regular time intervals. In classical, hard-wired plants, this has been a labor intensive procedure. In fully digitalized substations with Process Bus according to IEC 61850, however, dedicated functions can be used in order to perform in-system tests, without the need of physical intervention. Here, zenon can help to clearly indicate the operating mode of the plant and it´s components. By interpreting the IEC 61850 information, the test engineer can transparently identify which parts of the plant are isolated or in test mode. zenon helps to reset all relevant settings consistently and to re-arm the protection devices, once the tests have been finished.
Moreover, defective substation equipment needs to be replaced fast and must be thoroughly tested before switching back to regular operation. zenon offers solutions for a quick replacement of an IED in case of a breakdown. With the use of an alternative datapoint driver, values can be instantly routed to a replacement device, regardless of type and model.
Benefits for a highly-efficient engineering workflow
MMS Client – Data acquisition from IEDs
The IEC 61850 MMS Client driver comes with exceptional feature support and compliance to the standard. It supports Edition 1 as well as Edition 2.1 of IEC 61850-8-1 and is continuously enhanced according to the evolution of the standard. It is possible to upload data models from IEC 61850 servers as well as adopt them from SCL-files. Configuring the MMS client is done with the help of clearly structured dialogs which allows to adjust every aspect of the drivers functionality. Templates and automatic configuration tools can be utilized for large and standardized systems.
The driver supports static, as well as dynamic datasets for Reporting. In addition, special attention is paid to redundant HMI systems in terms of reports, so that continuous operation is guaranteed, even if a system part should fail. All in all, zenon´s IEC 61850 MMS Client helps the engineer to proceed with ease through bottom-up scenarios, but also promotes the realization of efficient top-down engineering workflows.
MMS Server – Providing data and services to higher level clients
An integrated IEC 61850 MMS server in an HMI can be utilized in various ways. It can be used for data aggregation, unification of communication, as a gateway or as a simulation and test utility. To achieve maximum flexibility, the IEC 61850 MMS server is integrated into the IEC 61131-3 (Soft PLC) environment of zenon. Thus, it is possible to adapt individually to an infinite number of configuration possibilities. Nevertheless, the basic rules of model description are also applied here. To start setting up the MMS Server´s data model an external SCL file can be imported. The entire data model and advanced server configurations are arranged with the help of an integrated configuration tool.
COPA-DATA Professional Services
In order to achieve the best possible results for your digital substation solution our team of experts supports you with more the 30 years of experience in substation automation. Services range from basic architectural concept studies and the creation of ergonomic HMI template designs to the creation of wizards and analysis of available data models for the automatic generation of projects. For more information, see: zenon Professional Support Services - COPA-DATA
GOOSE Publisher and Subscriber
GOOSE configuration in zenon Logic is primarily achieved through SCL files. The description file of an instance typically provides information on publishing GOOSE messages and is typically part of the IEC 61850 server's description. To configure subscriptions, the respective sections of other publishing entities are loaded. This method is simple, yet highly effective for GOOSE configuration in zenon.
Automatic HMI configuration – save up to 90% engineering time!
Investment security through professional industrial software
Selecting substation automation technology is crucial, since it has to reliably work under critical conditions for many years. A considerable number of utilities and energy companies all over the globe, who successfully trust in zenon enjoy invaluable benefits which contribute to the fulfillment of their responsibility and open new potential for business success:
Build on long term compatibility and excellent IEC 61850 support
The zenon Software Platform is specifically designed to operate in the context of the critical energy infrastructure. Reliable operation is brought in line with being capable to enhance and update the solution along the entire lifecycle with reasonable effort. The IEC 61850 standard for digital substations is constantly enhanced. COPA-DATA is dedicated to drive this evolution and provide excellent support for future enhancements of the standard. So, for instance, devices which support different versions – Edition 1 and Edition 2 - of the standard can be equally integrated into the same solution with zenon. The IEC 61850 MMS Client in zenon has officially been certified according to Edition 2 of the international standard (Certificate issued by DNV GL).
Succeed with digitalization in legacy environments
Digitization and refurbishment projects typically have to consider legacy equipment, standards and interfaces. zenon is vendor independent and offers out-of-the-box connection possibilities to IEDs and systems of any type. This enables the invention of IEC 61850-based solutions even in the context of heterogeneous environments.
Improve and scale your solution with ease
zenon can be utilized in applications at any scale. Ranging from small scale applications with few feeders to large scale O&M applications for substation fleets, the solution is driven by a fully integrated set of engineering and runtime components, which create high synergy during all phases of the project. zenon´s unparalleled networking technology allows to create modular and secure architectures, backed by optional redundancy features.
Future trends and development in IEC 61850 and zenon
While analyzing the role of IEC 61850 and zenon, it is important to keep future trends and developments in mind. Coping with increasing requirements, due to growing dynamics and demand for electrical energy, requires utilities to future-proof their assets and advance their operational effectiveness. As cybersecurity plays a bigger role in digitalized systems, the power industry must ensure protection against cyber threats. Additionally, the increased global emphasis on sustainability and zero-emission policies highlights the need to shut down traditional fossil energy sources in favor of distributed renewable ones. zenon is well positioned to tackle these challenges, with user interface development and smart grid solutions at the forefront of its development. We are excited to see what the future holds for our customers, IEC 61850, and zenon.
For more detailed information about the capabilities and implementation conformance of IEC 61850 related drivers and functions in zenon, please contact us.
