zenon substation automation software

• Vendor-Agnostic Connectivity: Native support for IEC 61850, DNP3, MODBUS, and 300+ protocols. Connect any device regardless of vendor, age, or protocol.

• IEC 61850 Edition 2.1: Full MMS Client/Server and GOOSE Publisher/Subscriber support. Seamlessly integrate protection and control devices across your substation network.

• Single Line Diagram with Topological Coloring: Intuitive visualization of switchyard status. Operators understand the grid state at a glance.

• Topological Interlocking: Safe command processing based on network topology. Prevent unsafe operations and enhance operator confidence.

• Alarm Management: Intelligent alarm handling that guides operators to the root cause. Reduce alarm floods and accelerate fault response.

• Sequence of Events (SoE): Time-stamped event logging for fault diagnosis. Pinpoint root causes faster and reduce investigation time.

• COMTRADE Disturbance Records: Integration with fault recording data. Fetch disturbance record files from any device via integrated File Transfer. Analyze faults accurately and resolve issues faster.

• Seamless Process Server Redundancy: High availability for critical operations. Ensure continuous operation during server failures.

• Parallel Redundancy Protocol (PRP): Zero-switchover-time redundancy. Maintain operation without interruption during network faults.

• Programmable Soft Logic (IEC 61131-3): Custom automation logic within the HMI. Extend functionality without additional hardware.

• Integrated Historian: Long-term data storage and trending. Analyze operational data to optimize performance and predict issues.

• Automatic Switching Sequences: Pre-configured command sequences for routine operations. Reduce operator workload and minimize human error.

• Engineering Studio: Object-oriented, template-based engineering with multi-project support. Reduce engineering effort and ensure consistency across projects.

• Automatic Substation Engineering (IEC 61850 Wizard): Automated engineering workflow for IEC 61850 integration. Significantly reduce project development time.

• Smart-Objects: Pre-developed templates for substation HMI including breakers, disconnectors, transformers, and IED faceplates. Apply with a few mouse clicks.

• Open Import/Export Formats: XML and wizard-based solutions for seamless data exchange with other engineering tools.

• Multi-Project Engineering: Work on multiple projects simultaneously and reuse engineering assets across different substations.

No. Modernization does not require a complete overhaul of your existing infrastructure. zenon enables a software-based approach that allows you to layer new automation capabilities on top of your current IEDs, protection relays, and RTUs, enabling phased modernization at your own pace.

The best approach is a phased modernization strategy that preserves existing equipment while gradually introducing new capabilities. zenon supports this through a hybrid substation model that combines conventional hard-wired equipment with digital technologies and modern communication standards like IEC 61850, allowing you to modernize incrementally without disrupting operations.

Substation automation addresses cybersecurity through multiple layers, including secure communication protocols (IEC 62351), role-based access control, network segmentation, and encryption. Automation also enables continuous monitoring, audit trails, and integration with security information and event management (SIEM) systems to detect and respond to threats in real time.

Substation automation software simplifies engineering through object-oriented configuration, template-based engineering, and reusable smart objects. zenon delivers these capabilities with diagnostic tools, online updates, and centralized management across multiple substations, reducing the time and effort required to deploy and maintain automation projects.

Substation automation improves grid reliability by providing operators with real-time visibility into asset status, enabling faster fault detection and isolation, and automating routine switching sequences. This reduces outage durations and allows operators to respond to grid events with greater confidence and speed.

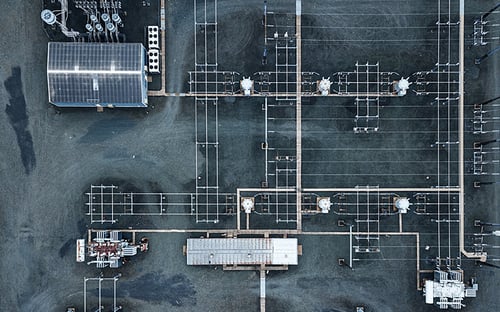

A conventional substation relies on hard-wired copper connections between devices, with analog signals and physical controls. A Digital Substation uses digital communication protocols like IEC 61850 to replace physical wiring with networked data exchange, saving wiring and space costs, providing greater flexibility for protection functions and achieving greater interoperability between devices from different vendors.

Software-defined automation is the approach to modernization based on decoupling control logic from proprietary hardware, moving the "brain" that connects the substation from individual IEDs and protection relays into the software layer. zenon delivers this by allowing you to add new functionality through software updates, replace hardware without changing the software, and modernize at your own pace, free from vendor lock-in.
